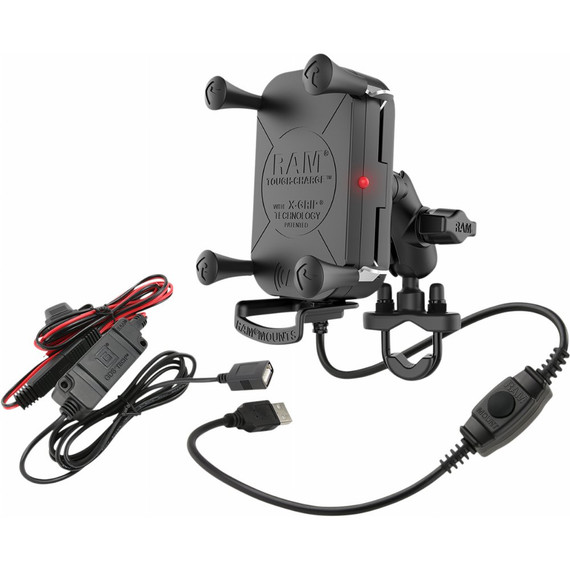

RAM Mounts Tough-Charge Wireless Charging Phone Holder w/ Mount

This product is a Kit that includes a Cradle, Arm, and Base. All components to complete your setup are included.

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Hardware Included:

• Safety Tether
• Glue Tube for Rubber Caps
• Cradle Leg
• Cradle Leg Cover
• Silicon sleeve for USB waterproof connection
• 1.2 Meter USB Extension Cable
• Small zip ties
• Large zip ties

U-Bolt Base Option:

• Includes short length double socket arm and zinc-coated U-bolt base.
• U-bolt hardware accommodates rails from .5" to 1.25" in diameter.
• Socket-to-socket length: 1.75"


Suction Cup Base Option:

• Includes medium length double socket arm and RAM® Twist-Lock™ suction cup
• Suction size: 3.3" diameter

• Socket-to-socket length: 3"

Tough Claw Base Option:

• Includes short length double socket arm and Tough Claw base
• Tough Claw easily attaches the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625” to 1.5” in outer diameter
• This kit includes a hardwire charger
• Socket-to-socket length: 1.75"

Holder Dimensions:

• Width Range: 2.375" - 3.25"
• Depth Range: .875" max

Ball Size:

• B Size (1")

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Materials:

• High strength composite
• Stainless steel

Power Specs:

• Input Power:5V-2A; 9V-1.67A
• Output: 5W / 7.5W / 10W
• Conversion Efficiency: 85% Max
• Maximum Case Thickness: 6mm
• Working Frequency: 110-205KHZ
• Product Standard: WPC v.1.2.4
• Qi Compatible
• Compatible with QC2.0/QC3.0 power supplies

Operating Temperature:

• 0°C to +37.7°C

Weight:

• 1.7 lbs. - 1.85 lbs

Additional Info:

• For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.
• Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

• Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

• iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.
