To avoid any fitment issues, please make sure to select the exact year, make and model of your vehicle. If you are unsure, please reach out to us for assistance prior to purchasing. Not that this part is built-to-order and NON-RETURNABLE. This part must be installed by a licensed professional to avoid any issues related to the complex installation

Maximize Performance with GDP Portals

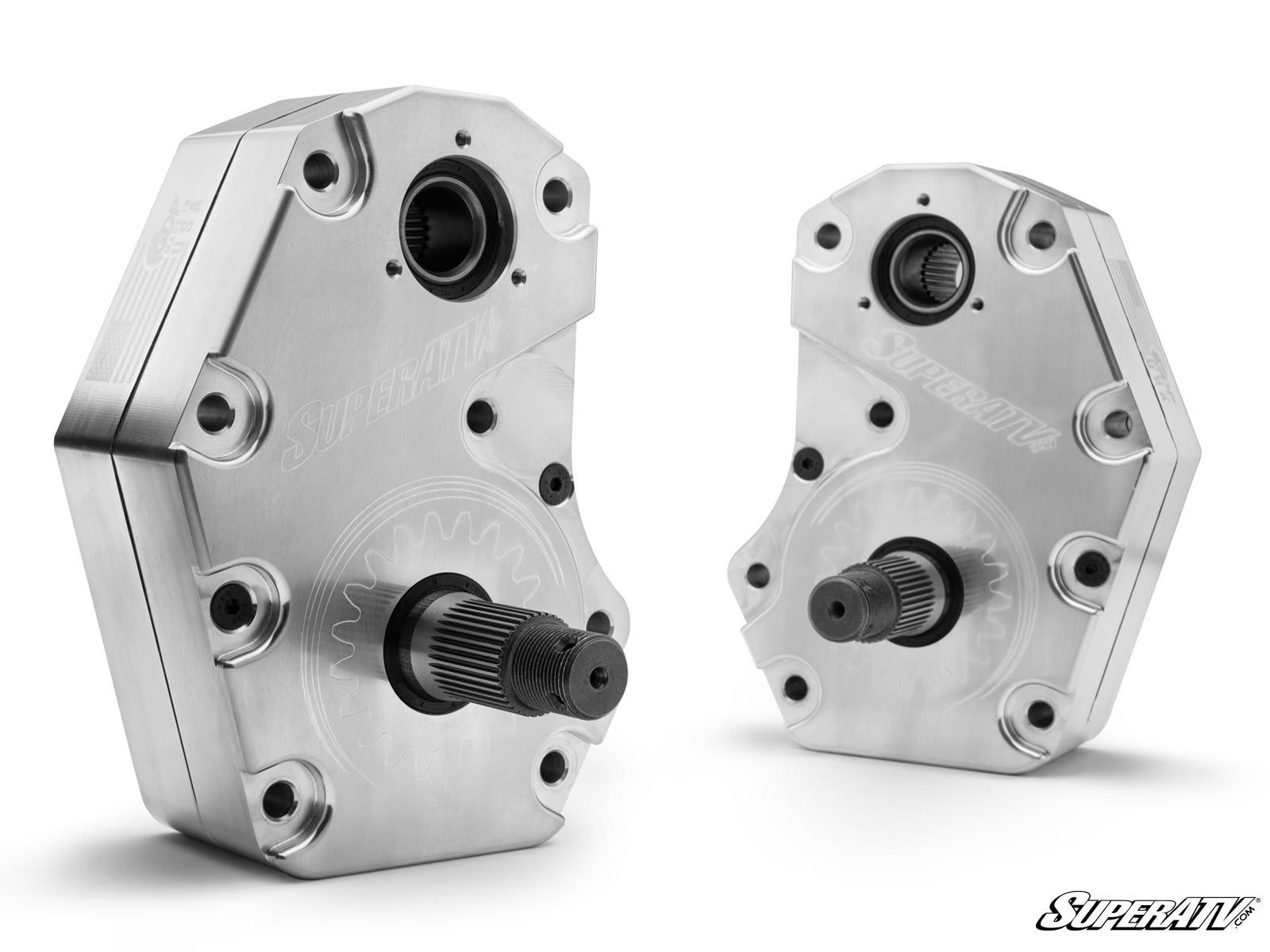

Take your ride beyond its limits with SuperATV's 6" Portal Gear Lift. It gives you a lift and gear reduction in one package. And with your choice of a 30% or 45% gear reduction, you get the torque you need to conquer mud, rocks, and hills. You'll also get more ground clearance and the ability to run bigger tires. If you want to dominate every ride, GDP Portals give you the power and performance to do it all.

Unmatched Torque and Power
A 30% or 45% gear reduction gives your ride serious power. If you want to tackle deep mud, haul heavy loads, or run massive tires, go with the 45% reduction. If you want to maintain your top speed while boosting torque, the 30% reduction is your best bet.

Protect Your Drivetrain for the Long Haul
Extra power means extra strain—but these GDP Portals protect your drivetrain. The gear reduction is built into the hub, keeping your axles, differential, and transmission protected from excess wear. And since our portals maintain your stock suspension, your axles stay cooler and last longer.

Stronger Than the Competition
You ride hard—your ride portals should need to be tough enough to handle it. Our cast and 6061 billet aluminum housings are built for extreme conditions, reinforced with advanced steel backing plates that's stronger than chromoly.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

6" Portal Gear Lift Includes:

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (2) Steel caliper mounting plates
• (2) Caliper mounting plate shims
• Extended brake lines
• All required hardware, including recessed castle nut socket

Max Tire Size Recommendations

FEATURES

• Available with billet or cast aluminum housing
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use gaskets or O-rings that don’t let anything through
• Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
• Gear reduction reduces stress on your drivetrain
• Lighter than the competition

NOTE: Only compatible on machines with IRS (Independent Rear Suspension)
