To avoid any fitment issues, please make sure to select the exact year, make and model of your vehicle. If you are unsure, please reach out to us for assistance prior to purchasing. Not that this part is built-to-order and NON-RETURNABLE. This part must be installed by a licensed professional to avoid any issues related to the complex installation

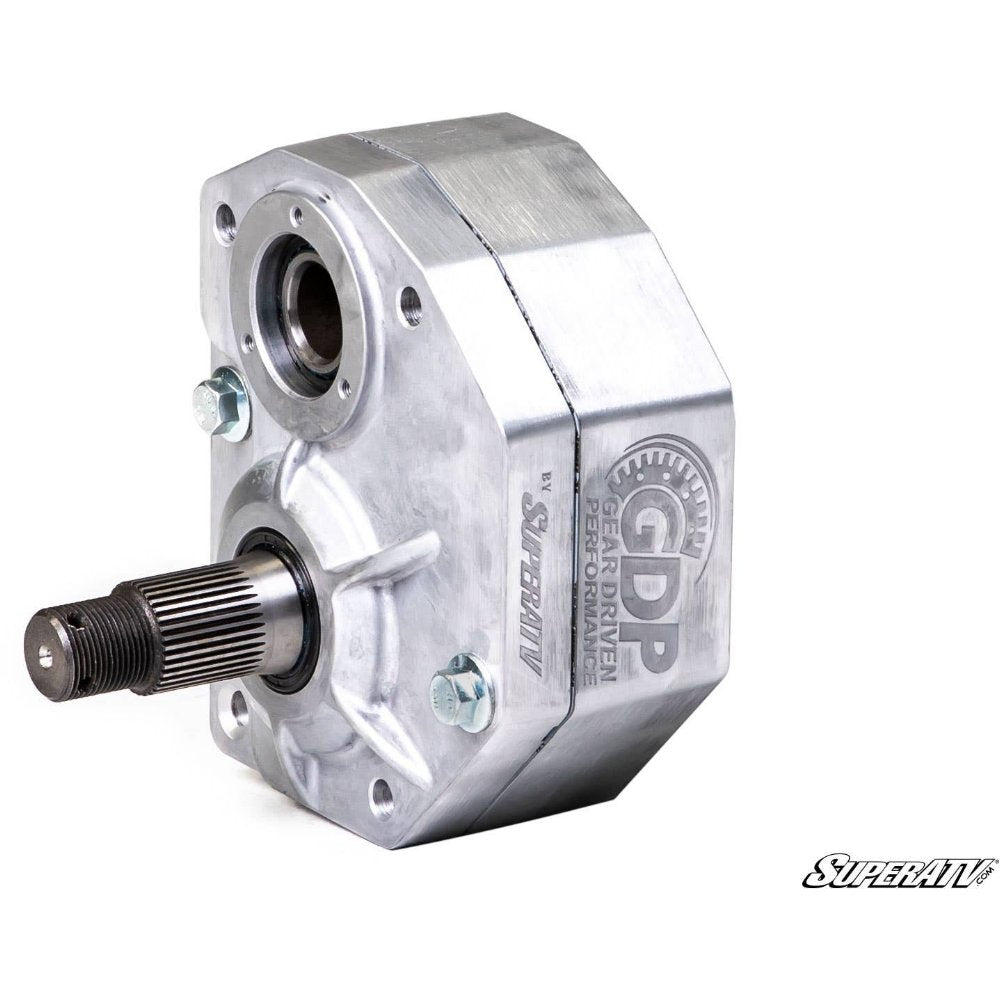

Gen 3 Portals are Geared for All
SuperATV’s GDP 4” Portal Gear Lift is Geared for All. What do we mean by that? Our 4” portal lift is available with 15% or 30% gear reductions and billet or aluminum housings. That means you get a gear reduction catered to you.

Perfect for Mud
Get a 30% gear reduction and start flingin’ mud. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction you can still ride it on the road and tear up trails and rocks.

Perfect for Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.

Perfect for Farming
Get 4” portals and a 15% gear reduction on your ride. You’ll have clearance to get over brush, sticks, and debris, and you’ll have the gear reduction to push through ruts and ditches easily -- all while towing a trailer full of tools. You’ll still have enough speed to cruise down the road between fields.   

Perfect for Trails
Get 4” portals and a 15% gear reduction on your machine and blaze a new trail. You’ll keep that high speed and dominate the toughest hills, ruts, and creeks. A little extra lift and a little extra torque make running bigger tires easy, too.

Better Gears
Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.

Stronger Housings by Design
Trust us when we say we’ve done our research. We’ve seen what makes housings fail—you know, those designs and materials that give off a “what not to do” vibe. And we do the opposite of that. Our housings are stronger, smarter, and more dependable by design. Whether you go with cast or our USA-made and CNC-machined 6061 billet aluminum, you’re getting portal housings that offer unmatched strength and reliability.

• Our housings are reinforced in all the right places
• They’re built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Portal Gear Reduction Recommendations

FEATURES

• Available with billet or cast aluminum housing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hubs can be set up to work with the following bolt patterns: 4/156, 4/137, 4/115, and 4/110
• Comes complete with all hardware, backing plates, brakes lines and instructions
