Revamp Your Ride

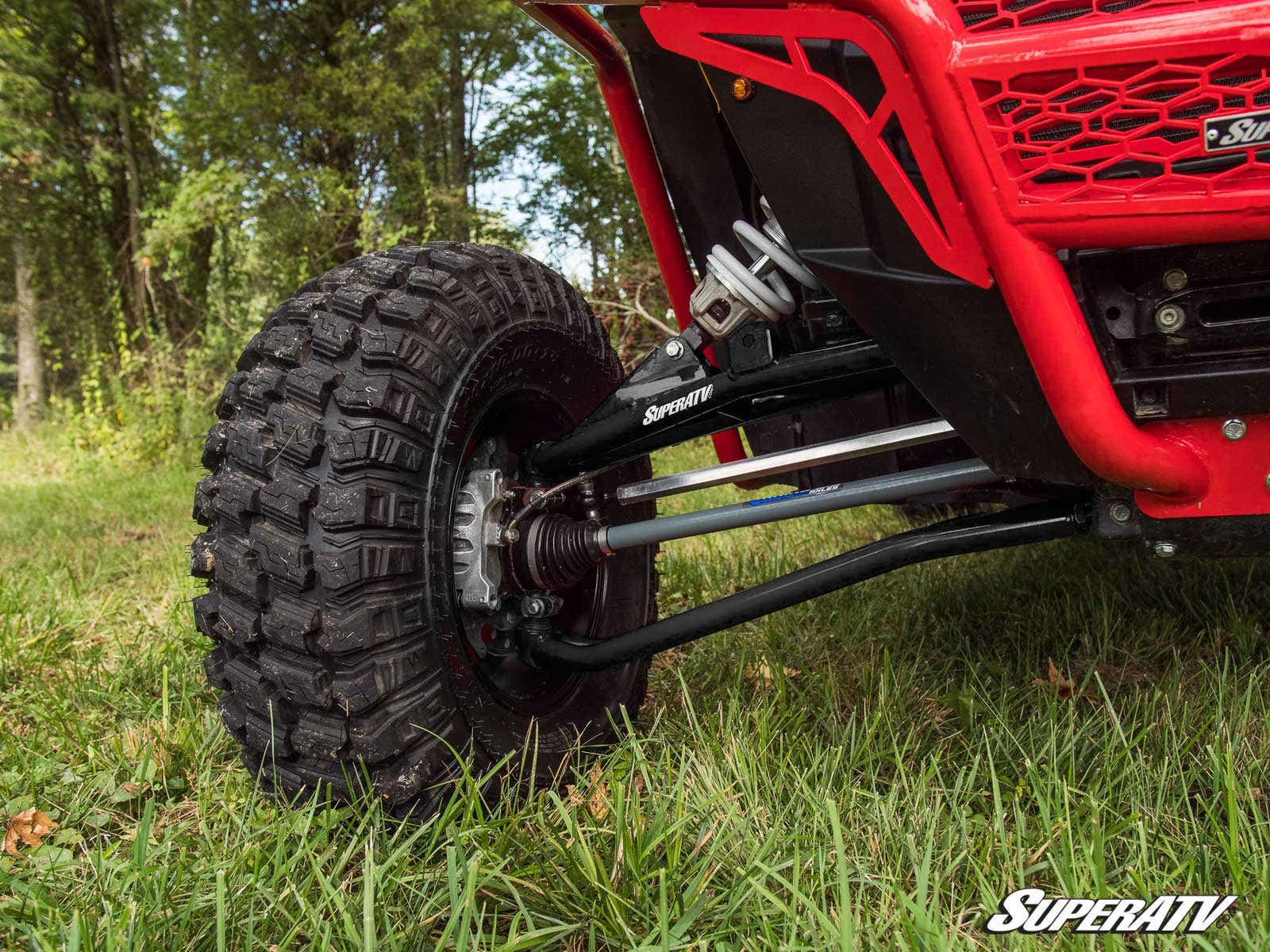

Get ready to experience a whole new breed of ride with SuperATV’s Chromoly Tubed Long Travel Kit. It adds 3” to each side of your machine for an additional 6” of width overall. In addition to the added stability, this kit is a premium suspension overhaul. With chromoly high-clearance A-arms, beefed-up hex radius arms and tie rods, and ultra-tough trailing arms, you get the head-turning suspension your machine deserves. We finish it off with unbeatable Rhino 2.0 Axles to make it the most advanced long travel kit you can get.

Suspension That Exudes Strength
High performance calls for high quality, and this long travel kit delivers. Every piece has “strength” written all over it. You get chromoly tubed A-arms with robust internal gussets, chromoly ball joint housings, and TIG-welded seams. These high-clearance arms feature adjustable chromoly pivot blocks that come preadjusted to stock specs. You also get hex billet aluminum radius arms that have massive 3/4” heim joints and trailing arms made with 1/8” heavy-duty steel plating. All arms are covered by a lifetime warranty.

Includes Rhino 2.0 Axles and Billet Aluminum Tie Rods
You can’t overhaul your suspension without some Rhino 2.0s. They feature bigger axle shafts and an all-chromoly steel construction to give you twice the strength of stock. Maximized CV joints, endless lab and field testing, and our proprietary heat treatment make Rhino 2.0 Axles the best in their class. This long travel kit also comes with a premium heavy-duty tie rod kit. With a 6061-T6 billet aluminum construction and polished, head-turning hex design, these tie rods are exactly what your ride needs.

• (4) High-clearance chromoly tubed A-arms
• (2) Rear trailing arms
• (2) Billet aluminum hex radius arms
• (4) Rhino 2.0 Axles
• (2) Billet aluminum hex tie rod kit
• New springs and crossover nuts (uses stock shocks)
• Extended brake lines
• All required hardware

• Adds 3” to each side (6” overall)
• Fit up to a 37” tire
• 16.5” of ground clearance
• Comes with everything you need to install and go
• Adjustable pivot blocks and radius arms for full camber adjustability
