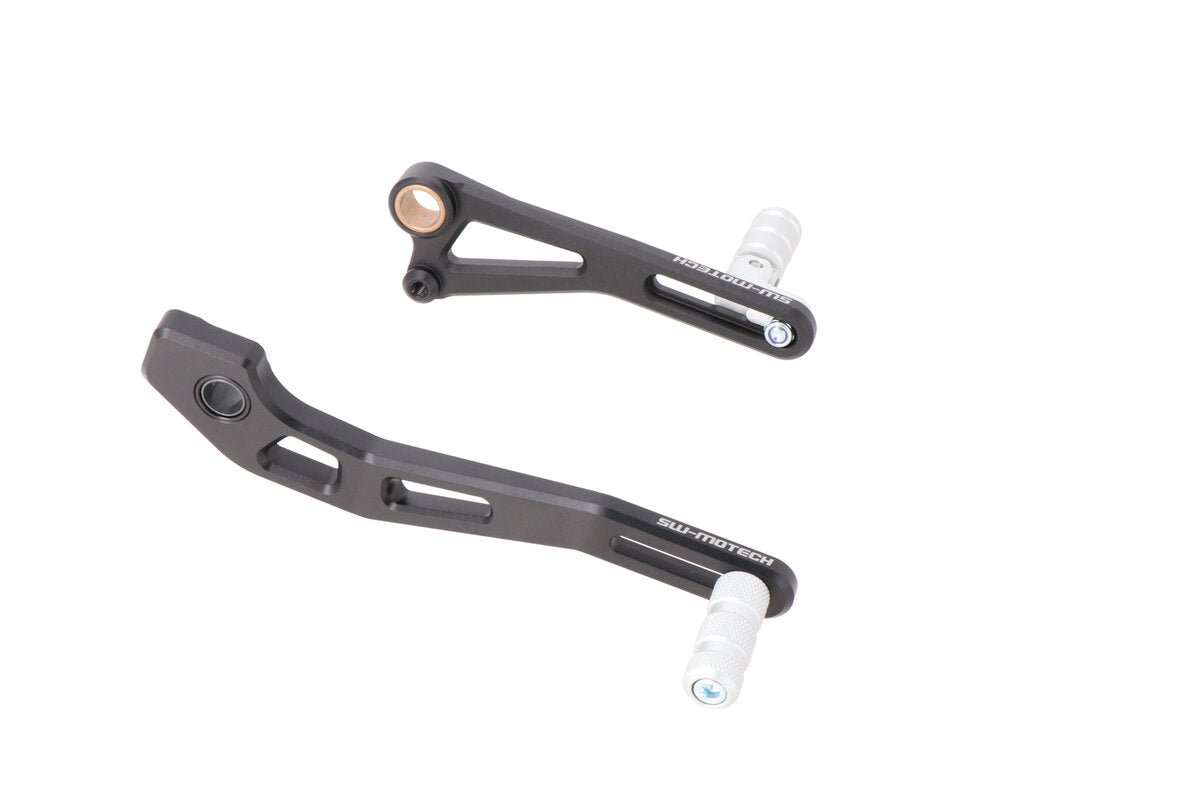

This ergonomic lever set made of high-quality aluminium was developed specifically for the Harley Davidson Pan America 1250 and features an adjustable gear lever and a brake pedal. Both foot levers are anodized with HART-COAT to protect against scratching and are tested for precision fit and functionality. This shift and brake set not only looks great on your bike, but they also allow you to fully customize your exact foot position for optimum control while shifting, braking, sitting or standing—no matter what kind of boot you're wearing.

BRAKE PEDAL

• Bike-specific aluminum lever arm
• Robust construction, perfect fit: CNC-milled, HART-COAT coated aluminum
• Better ergonomics and safe operation of the brake pedal
• High-quality milled tread for maximum stability
• Knurling increases grip and prevents slipping
• Platform features various adjustable positions
• Tread STREET included by default in delivery
• Adventure tread for off-road touring (sold separately)
• TÜV certificate and national type approval available
• Material: Aluminum
• Color: black
• Total Weight: appr. 0,2 kg / appr. 0.4 lb

GEAR LEVER

• Two-part gear lever with continuously adjustable unit
• Distance between tread and switching shaft on the original gear lever: 133 mm
• Adjustment range of the distance between the step and the switch shaft on the SW-MOTECH gear lever: 78 - 134 mm
• The tread can also be mounted rotated 180 degrees
• Better ergonomics and safe operation of the gear lever
• A spring mechanism enables it to be folded down and protects it from breaking in case of a crash
• Robust and elegant: CNC-milled, HART-COAT coated aluminum
• Mounting of an extension for gear lever for expanding the tread surface possible
• General Operating License not required for German traffic
• Material: Aluminum / Aluminum
• Surface: anodized / anodized
• Color: black / silver
• Total Weight: appr. 0,2 kg / appr. 0.3 lb

INCLUDED

• 1 x Brake pedal
• 1 x Gear lever
• Mounting instructions
• Mounting material
